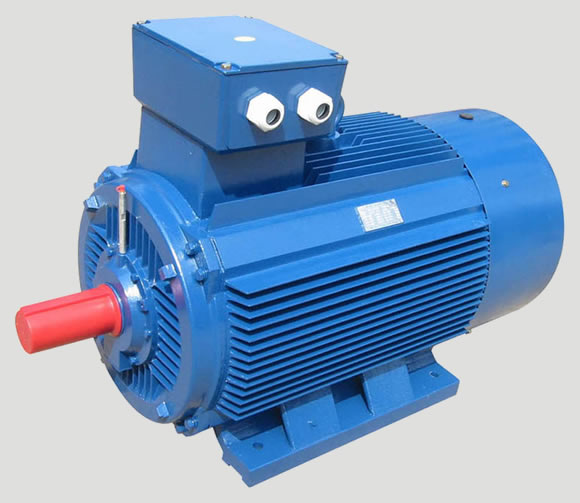

Y2系列電機
生產廠家:南洋防爆電機有限公司 瀏覽量:已有人關注
 點擊看大圖
|
Y2系列電機工作原理
當電動機的三相定子繞組(各相差120度電角度)，通入三相對稱交流電后，將產生一個旋轉磁場，該旋轉磁場切割轉子繞組，從而在轉子繞組中產生感應電流(轉子繞組是閉合通路)，載流的轉子導體在定子旋轉磁場作用下將產生電磁力，從而在電機轉軸上形成電磁轉矩，驅動電動機旋轉，并且電機旋轉方向與旋轉磁場方向相同。
Y2系列電機的工作環境
Y2系列電動機額定電壓為380V，額定頻率為50Hz。功率3kwt以下為Y接法，其他功率均為△接法。電動機運行地點的海拔不超過1000m；環境空氣溫度隨季節變化，但不超過40℃；最低環境空氣溫度為-15℃；最濕月月平均最高相對濕度為90%；同時該月月平均最低溫度不高于25℃。
Y2系列電機產品特點：
二、Y2系列電動機有兩種設計，一種是適用于一般機械配套和出口需要，在輕載時有較高效率，在實際運行中有較佳節能效果，且具有較高堵轉轉矩，此設計稱為Y2-Y系列。中心高63～355mm，功率從0.12~315kW。電動機符合JB/T8680.1-1998 Y2系列(1P54)三相異步電動機（機座號63～355）技術條件。 型號含義：如Y2-200L1-2Y：“Y2”表示異步電動機第二次改型設計，“200”表示中心高，“L”表示機座長短號，“1”表示鐵心長度序號，“2”表示極數，“Y”表示第一種設計（可省略）。 第2種設計是滿載時有較高效率，更適用于長期運行和負載率較高的使用場合，如水泵、風機配套，此設計稱為Y2-E系列，中心高80～280mm，功率從0.55～90kW。電動機符合JB/T8680.2-1998 Y2系列(1P54)三相異步電動機（機座號80～280）技術條件。 型號含義：如Y2-200L2-6E：“Y2”表示異步電動機第二次改型設計，“200”表示中心高，“L”表示機座長短號，“2”表示鐵心長度序號，“6”表示極數，“E”表示第二種設計。
Y2系列電機參數表
|
型號
|
功率
(kw) |
型號
|
功率
(kw) |
型號
|
功率
(kw) |
型號
|
功率
(kw) |
|
Y2-63M1-2
|
0.18
|
Y2-100L1-8
|
0.75
|
Y2-200L1-2
|
30
|
Y2-315M-4
|
132
|
|
Y2-63M2-2
|
0.25
|
Y2-100L2-8
|
1.1
|
Y2-200L2-2
|
37
|
Y2-315M-6
|
90
|
|
Y2-63M1-4
|
0.12
|
Y2-112M-2
|
4
|
Y2-200L-4
|
30
|
Y2-315M-8
|
75
|
|
Y2-63M2-4
|
0.18
|
Y2-112M-4
|
4
|
Y2-200L1-6
|
18.5
|
Y2-315M-10
|
55
|
|
Y2-71M1-2
|
0.37
|
Y2-112M-6
|
2.2
|
Y2-200L2-6
|
22
|
Y2-315L1-2
|
160
|
|
Y2-71M2-2
|
0.55
|
Y2-112M-8
|
1.5
|
Y2-200L-8
|
15
|
Y2-315L2-2
|
200
|
|
Y2-71M1-4
|
0.25
|
Y2-132S1-2
|
5.5
|
Y2-225S-4
|
37
|
Y2-315L1-4
|
160
|
|
Y2-71M2-4
|
0.37
|
Y2-132S2-2
|
7.5
|
Y2-225S-8
|
18.5
|
Y2-315L2-4
|
200
|
|
Y2-71M1-6
|
0.18
|
Y2-132S-4
|
5.5
|
Y2-225M-2
|
45
|
Y2-315L1-6
|
110
|
|
Y2-71M2-6
|
0.25
|
Y2-132S-6
|
3
|
Y2-225M-4
|
45
|
Y2-315L2-6
|
132
|
|
Y2-80M1-2
|
0.75
|
Y2-132S-8
|
2.2
|
Y2-225M-6
|
30
|
Y2-315L1-8
|
90
|
|
Y2-80M2-2
|
1.1
|
Y2-132M-4
|
7.5
|
Y2-225M-8
|
22
|
Y2-315L2-8
|
110
|
|
Y2-80M1-4
|
0.55
|
Y2-132M1-6
|
4
|
Y2-250M-2
|
55
|
Y2-315L1-10
|
75
|
|
Y2-80M2-4
|
0.75
|
Y2-132M2-6
|
5.5
|
Y2-250M-4
|
55
|
Y2-315L2-10
|
90
|
|
Y2-80M1-6
|
0.37
|
Y2-132M-8
|
3
|
Y2-250M-6
|
37
|
Y2-355M-2
|
250
|
|
Y2-80M2-6
|
0.55
|
Y2-160M1-2
|
11
|
Y2-250M-8
|
30
|
Y2-355M-4
|
250
|
|
Y2-80M1-8
|
0.18
|
Y2-160M2-2
|
15
|
Y2-280S-2
|
75
|
Y2-355M1-6
|
160
|
|
Y2-80M2-8
|
0.25
|
Y2-160M-4
|
11
|
Y2-280S-4
|
75
|
Y2-355M2-6
|
200
|
|
Y2-90S-2
|
1.5
|
Y2-160M-6
|
7.5
|
Y2-280S-6
|
45
|
Y2-355M1-8
|
132
|
|
Y2-90S-4
|
1.1
|
Y2-160M1-8
|
4
|
Y2-280S-8
|
37
|
Y2-355M2-8
|
160
|
|
Y2-90S-6
|
0.75
|
Y2-160M2-8
|
5.5
|
Y2-280M-2
|
90
|
Y2-355M1-10
|
110
|
|
Y2-90S-8
|
0.37
|
Y2-160L-2
|
18.5
|
Y2-280M-4
|
90
|
Y2-355M2-10
|
132
|
|
Y2-90L-2
|
2.2
|
Y2-160L-4
|
15
|
Y2-280M-6
|
55
|
Y2-355L-2
|
315
|
|
Y2-90L-4
|
1.5
|
Y2-160L-6
|
11
|
Y2-280M-8
|
45
|
Y2-355L-4
|
315
|
|
Y2-90L-6
|
1.1
|
Y2-160L-8
|
7.5
|
Y2-315S-2
|
110
|
Y2-355L-6
|
250
|
|
Y2-90L-8
|
0.55
|
Y2-180M-2
|
22
|
Y2-315S-4
|
110
|
Y2-355L-8
|
200
|
|
Y2-100L-2
|
3
|
Y2-180M-4
|
18.5
|
Y2-315S-6
|
75
|
Y2-355L-10
|
160
|
|
Y2-100L1-4
|
2.2
|
Y2-180L-4
|
22
|
Y2-315S-8
|
55
|
|
|
|
Y2-100L2-4
|
3
|
Y2-180L-6
|
15
|
Y2-315S-10
|
45
|
|
|
|
Y2-100L-6
|
1.5
|
Y2-180L-8
|
11
|
Y2-315M-2
|
132
|
|
|
|
機座號
|
極數
|
安裝尺寸
|
外形尺寸
|
|||||||||||||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
凸緣
孔數 |
AB
|
AC
|
AD
|
HD
|
L
|
||
|
Y2-63M
|
2,4
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
115
|
95
|
140
|
0
|
10
|
3
|
4
|
135
|
130
|
70
|
180
|
230
|
|
Y2-71M
|
2,4,8
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
130
|
110
|
160
|
0
|
10
|
3.5
|
4
|
150
|
145
|
80
|
195
|
230
|
|
Y2-80M
|
2,4,6,8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
165
|
175
|
145
|
220
|
295
|
|
Y2-90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
195
|
155
|
250
|
345
|
|
|
Y2-90L
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
195
|
155
|
250
|
345
|
|
|
Y2-100L
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
4
|
205
|
215
|
180
|
270
|
385
|
|
|
Y2-112M
|
190
|
140
|
73
|
28
|
60
|
8
|
24
|
112
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
4
|
230
|
240
|
190
|
300
|
400
|
|
|
Y2-132S
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
4
|
270
|
275
|
210
|
345
|
470
|
|
|
Y2-132M
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
4
|
270
|
275
|
210
|
345
|
510
|
|
|
Y2-160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
320
|
330
|
255
|
420
|
615
|
|
|
Y2-160L
|
254
|
254
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
320
|
330
|
255
|
420
|
670
|
|
|
Y2-180M
|
279
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
355
|
380
|
280
|
455
|
700
|
|
|
Y2-180L
|
279
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
355
|
380
|
280
|
455
|
740
|
|
|
Y2-200L
|
318
|
305
|
133
|
55
|
110
|
16
|
49
|
200
|
19
|
350
|
300
|
400
|
0
|
19
|
5
|
4
|
395
|
420
|
305
|
505
|
770
|
|
|
Y2-225S
|
4,8
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
225
|
19
|
400
|
350
|
450
|
0
|
19
|
5
|
8
|
435
|
470
|
335
|
560
|
815
|
|
Y2-225M
|
2
|
356
|
311
|
149
|
55
|
140
|
16
|
49
|
225
|
19
|
400
|
350
|
450
|
0
|
19
|
5
|
8
|
435
|
470
|
335
|
560
|
820
|
|
4,6,8
|
356
|
311
|
149
|
60
|
140
|
18
|
53
|
225
|
19
|
400
|
350
|
450
|
0
|
19
|
5
|
8
|
435
|
470
|
335
|
560
|
845
|
|
|
Y2-250M
|
2
|
406
|
349
|
168
|
60
|
140
|
18
|
53
|
250
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
490
|
510
|
370
|
615
|
910
|
|
4,6,8
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
250
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
490
|
510
|
370
|
615
|
910
|
|
|
Y2-280S
|
2
|
457
|
368
|
190
|
65
|
140
|
18
|
58
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
550
|
580
|
410
|
680
|
985
|
|
4,6,8
|
457
|
368
|
190
|
75
|
140
|
20
|
67.5
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
550
|
580
|
410
|
680
|
985
|
|
|
Y2-280M
|
2
|
457
|
419
|
190
|
65
|
140
|
18
|
58
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
550
|
580
|
410
|
680
|
1035
|
|
4,6,8
|
457
|
419
|
190
|
75
|
140
|
20
|
67.5
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
550
|
580
|
410
|
680
|
1035
|
|
|
Y2-315S
|
2
|
508
|
406
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1160
|
|
4,6,8,10
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1270
|
|
|
Y2-315M
|
2
|
508
|
457
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1190
|
|
4,6,8,10
|
508
|
457
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1300
|
|
|
Y2-315L
|
2
|
508
|
508
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1190
|
|
4,6,8,10
|
508
|
508
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
635
|
645
|
530
|
845
|
1300
|
|
|
Y2-355M
|
2
|
610
|
560
|
254
|
75
|
140
|
20
|
67.5
|
355
|
28
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
730
|
710
|
655
|
1010
|
1500
|
|
4,6,8,10
|
610
|
560
|
254
|
95
|
170
|
25
|
86
|
355
|
28
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
730
|
710
|
655
|
1010
|
1530
|
|
|
Y2-355L
|
2
|
610
|
630
|
254
|
75
|
140
|
20
|
67.5
|
355
|
28
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
730
|
710
|
655
|
1010
|
1500
|
|
4,6,8,10
|
610
|
630
|
254
|
95
|
170
|
25
|
86
|
355
|
28
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
730
|
710
|
655
|
1010
|
1530
|
|
